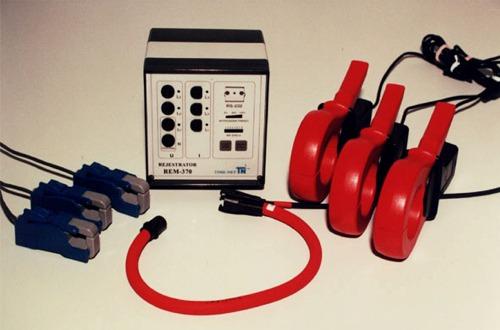

Power supply quality analysing device with harmonics analysis type REM-370
SELECTED TECHNICAL DATA:
Measurements in conformity with standard: | EN 50160 or standard defined by user
! |
Number of phases: | 1 or 3 |
Memory capacity: | 3MB |
Interface: | RS-232 optic interface |
Power supply: | 110, 230 lub 380V from measuring conductors |
Reserve supply: | from battery of accumulators |
Operation without power supply: | 2hours (memory 1 year) |
Housing protection: | industrial, IP52 |
Measurements: | 137 x 132 x 138mm |
This device can register
several hundred network parameters and examine energy quality in accordance with EN 50160
standard (except flickers).
Especially interesting are unique features of this device such as detection of
micro-breaks in power supply, change in the recording speed and in the memory record
configuration after exceeding some preset limit value or statistic classification of average values.
Full specification of registered parameters is included in the information card of the device.
Moreover the device can be used together with optional miniature printer (which does not
require external PC computer for its operation). This printer can print the report of supply quality
conformance with EN 50160 standard or the report of measured parameters momentary values, without
interrupting the registration of measurements results into the device memory.
